ONEMODE (for USA only)

ONEMODE upgrades multimode optical fibers to single-mode in an existing infrastructure without requiring cable replacement.
Data Speed Aroona Connect 1150x500

ONEMODE

  • Up to 100 Gbps over distances of up to 10 km, compatible with OM1/OM2/OM3/OM4/OM5 fiber
  • Installation only requires a simple fusion splicing
  • Available in 2 versions (rack & compact module), from 2 to 24 fiber connections
  • Passive solution, no power supply required
Onemode 02
Rack 19″ – 1 U, existe en version 4,8,12,24 fibres

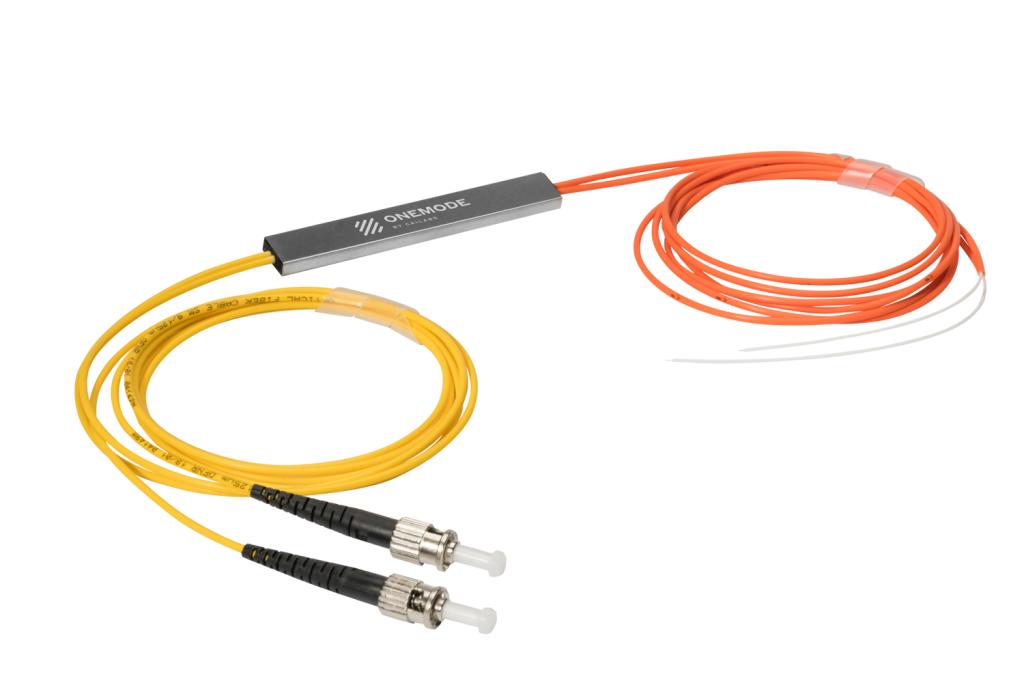

Onemode 01
Onemode 01
Onemode 02

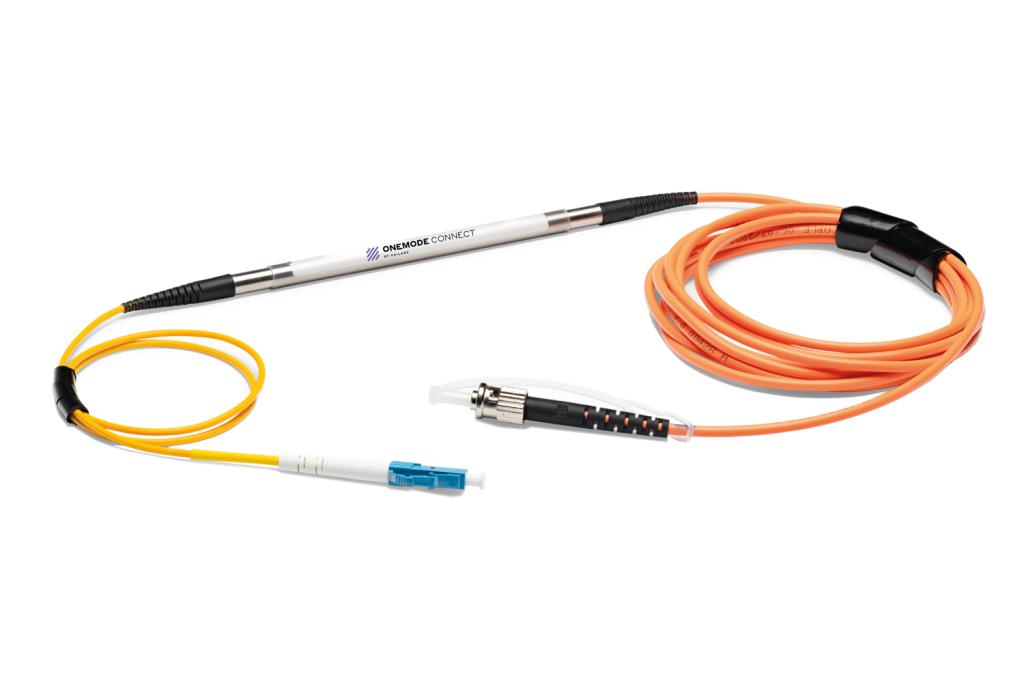

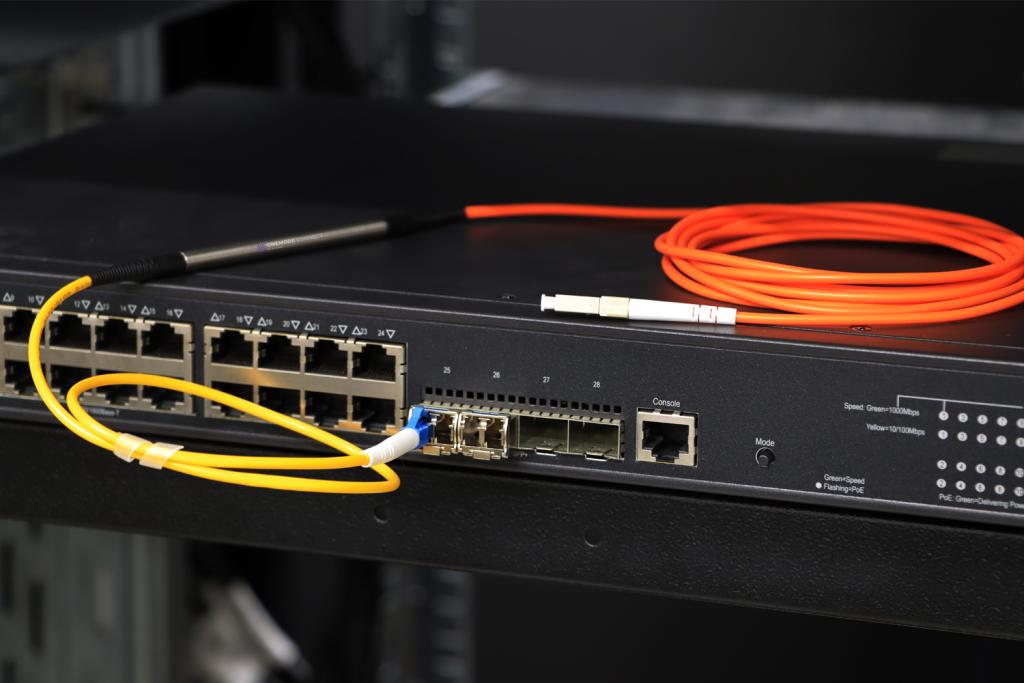

ONEMODE-CONNECT

  • Connects to on-site fiber optic cabling, no splicing required
  • Up to 40 Gbps over distances of up to 550 m, compatible with OM1/OM2/OM3/OM4 fiber
  • Plug and play: standard multimode connector (ST, LC, ST)
  • Single-strand passive converter

Cailabs ONEMODE – Convert your Multimode Fibers into Single-mode Fibers!

Many Local Area Networks (LANs) are cabled with multimode fibers (MMF) that are limited in bandwidth. The transmitted throughput cannot exceed 1 Gb/s or even 100 Mb/s and therefore does not meet the growing demand for increased network bandwidth. The various solutions offered by the ONEMODE series make it possible to overcome these limitations and transmit tens of Gb/s over an existing multimode fiber structured cabling infrastructure just by installing a simple box. ONEMODE offers a scalable, cost-effective solution that minimizes the expense of cabling infrastructure upgrades while significantly reducing your carbon footprint.

Cailabs Aroona Generic Lc Connectors Only

Resources

Questions about ONEMODE?

Do you want to know how the ONEMODE solution
can future-proof your multimode optical fiber network?
